MOXA MPC-3070W-E2-LB-T
MPC-3070W Series 7 inch wide-screen touch panel computer with Intel Atom Elkhart Lake dual-core x6211E CPU, 8GB DDR4, 400-nits LCD with multi-touch, 2xUSB3.0, 2xRS-232/RS-422/RS-485, 2xGigaLan, 12/24VDC , -30°C to 60°C operating temperature (QTC)
Datasheet
Overview
Specifications
Accessories
Introduction
The MPC-3070W 7-inch panel computers with Intel Atom®x6211E dual-core or x6425E quad-core processor deliver a reliable,durable, and versatile platform for use in industrial environments.With two software selectable RS-232/422/485 serial ports and two GigabitEthernet ports, the MPC-3070W panel computers support a wide varietyof serial interfaces as well as high-speed IT communications, allwith native network redundancy.
The MPC-3070W panel computers are designed for the -30to 60°C temperature range, and come with a fanless, streamlined enclosuredesigned for highly efficient heat dissipation. This makes the computers reliableindustrial platforms for harsh, hot, outdoor environments like oiland gas fields and drilling platforms. The MPC-3070W also featuresa 400–nit or 1000–nit LCD panel offering a sunlight-readable, projected-capacitive,glove-friendly, multi-touch screen for an excellent user experiencein outdoor applications.

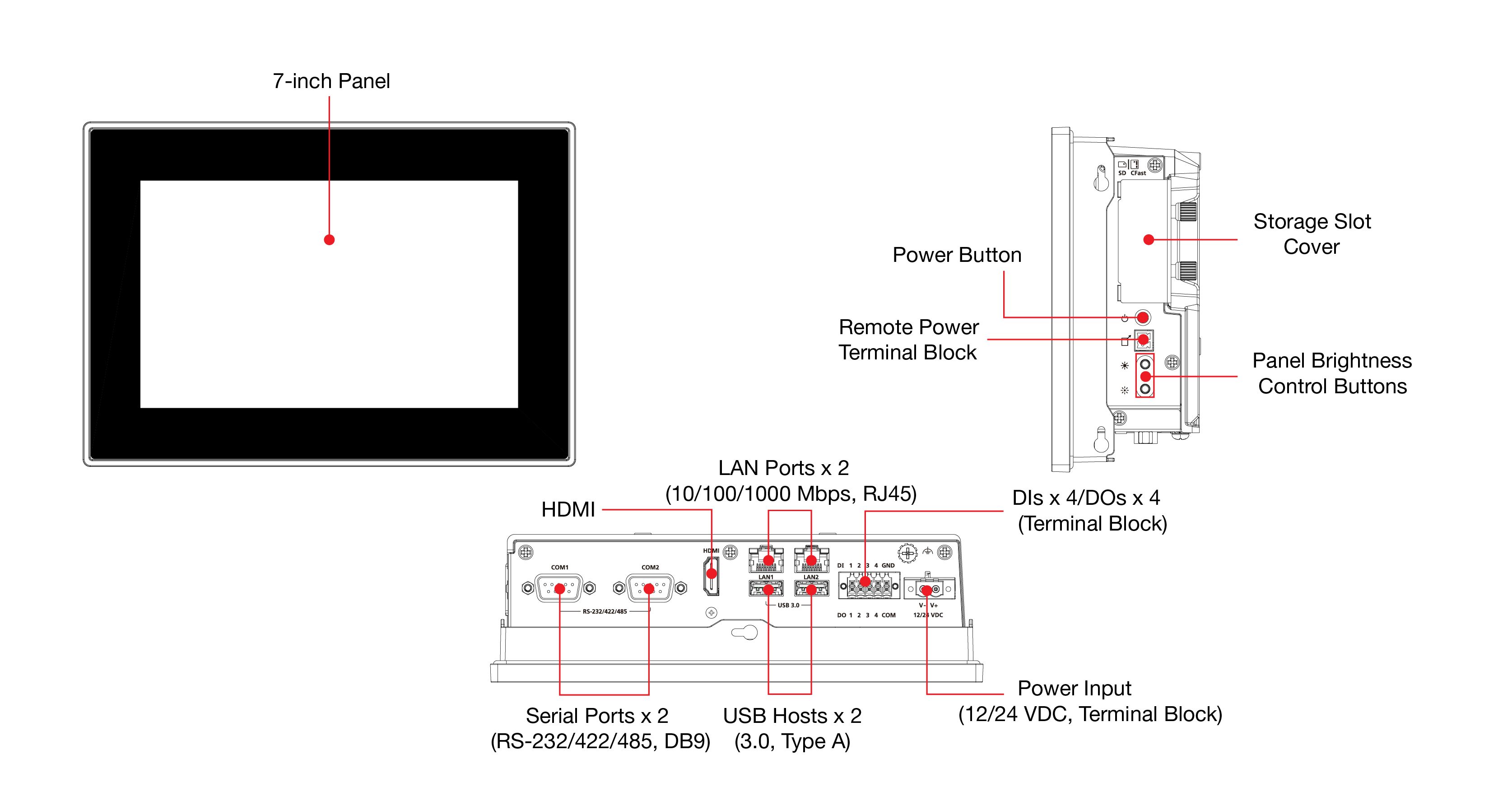

Appearance
