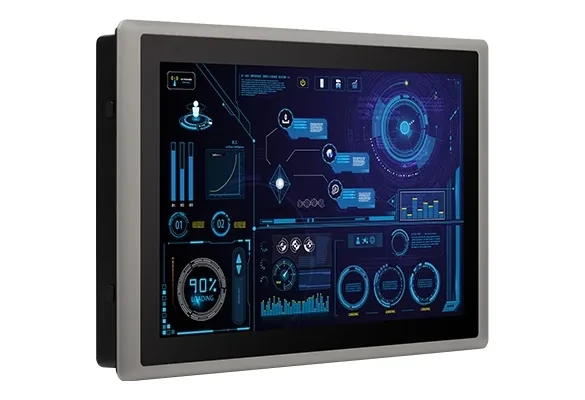

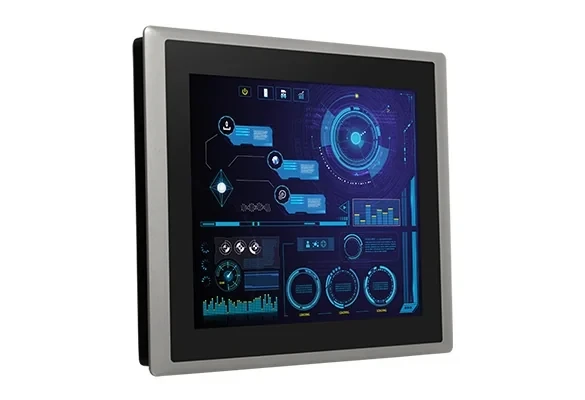

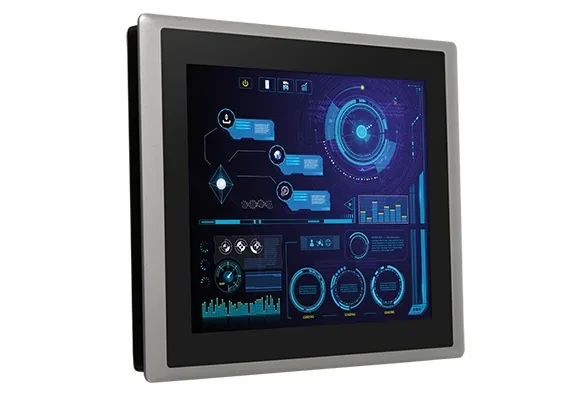

Cincoze High Performance Panel PC (CV Series)
Intel Core Ultra compute, an IP65-rated front panel, and CDS modular service for continuous HMI duty in wash-down, deck, and wellsite environments.
The 3 Critical Failure Vectors
Field failures are usually tied to three specific variables. Validate your project against these vectors to ensure 24/7 reliability.
Wash-down spray, sea spray, and condensation sit on the glass. Standard touchscreens register phantom presses or nothing at all, and the operator walks to a second terminal.
In a sealed all-in-one panel PC, a cracked screen condemns the computer with it. The line stops while a full replacement unit ships and gets recommissioned.
Cabinet cutouts differ from bridge consoles and wellsite shelters. Sourcing a different panel PC per site means a new image, new drivers, and a fresh qualification run.
The Right Solution for Your Toughest Deployment Challenges
A cracked panel becomes a display swap, not a system replacement. The compute module, storage, and validated OS image stay in the cabinet and keep running.
The IP65-rated front panel seals against wash-down spray and dust. Choose projected capacitive for multi-touch or 5-wire resistive for heavy glove operation.
Two 2.5-inch SATA bays plus three M.2 slots hold the recipe database and the image log on the same terminal, with RAID 0/1 for redundancy.
Four COM ports, two 2.5GbE LAN, and 16 isolated DIO channels reach legacy PLCs and modern controllers. DisplayPort, HDMI, and VGA drive a second operator screen.
.svg)
The 9 to 48VDC input rides out unstable site power. Shock at 50 Grms and vibration at 1 Grms follow MIL-STD-810H test methods in three axes.
Every panel from 12 to 24 inch runs the same P2302 module. Validate the OS image once and reuse it across every cabinet cutout on site.
Cincoze CV Series Selection Guide
Choose the panel size that matches your cabinet cutout. The P2302 compute module stays the same across all three.
