Extreme Rugged Panel PC
Built for Extreme Outdoor and Hazardous Environment

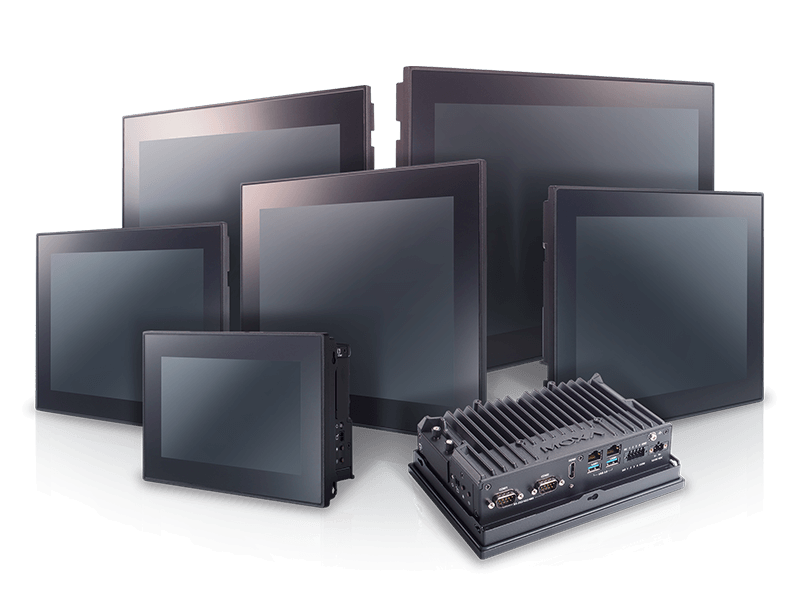

Powered by Intel Atom® x6000E processors, the Moxa MPC-3000 series panel PCs feature six models with display sizes ranging from 7 to 15.6 inches, engineered for extreme conditions to enhance productivity. With certifications including CID2, IECEx Zone 2, ATEX Zone 2, DNV, IEC 60945, and IACS E10, these panel PCs meet the highest industry standards for durability and safety.
Industrial-grade Rugged Design for Reliable Operations
Featuring a fanless design and glove-friendly multi-touch screens, our panel PCs boast an IP66 metal housing and an operating temperature range -30 to 60°C, perfect for outdoor and hazardous applications.
Industry Certifications for Performance and
CID2, ATEX, IECEX, and DNV certifications ensure our panel PCs meet stringent requirements for a range of industrial applications.
Modular Design for Easy Maintenance
The modular design, with minimized cabling, simplifies maintenance by offering a cableless approach on the front and rear panels, which reduces downtime and enhances operational efficiency.
Rugged Industrial Panel PCs for Oil and Gas Applications
Engineered for the Extremes
Industrial applications in harsh and hazardous environments face challenges like extreme temperatures, dust, water exposure, and explosive atmospheres. Designed for oil & gas, marine, and outdoor applications, the MPC-3000 Series panel PCs deliver rugged, adaptable, and high-performance solutions to ensure safe and reliable operation.
Applications
Moxa’s rugged panel PCs perform reliably in the most demanding industrial environments. Their industrial-grade durability, wide-temperature operation, and glove-friendly multi-touch screens enable seamless control and monitoring, even in harsh conditions.

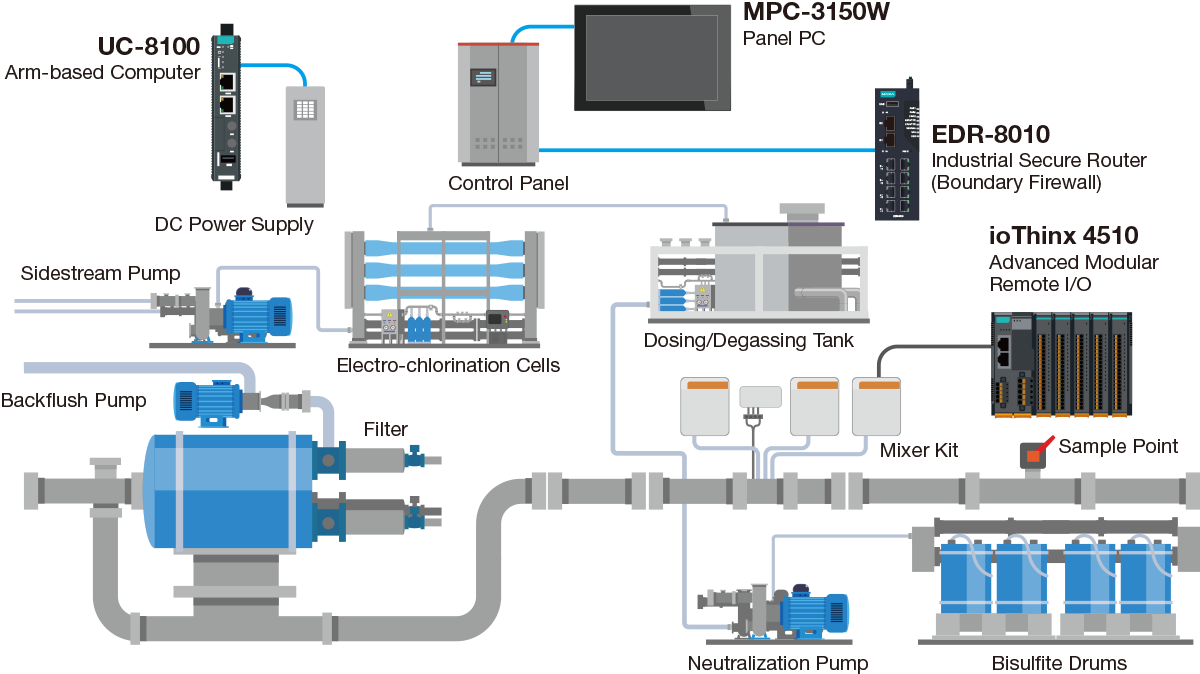

Ensuring Compliance and Reliability for Ballast Water Treatment Systems
To comply with ballast water treatment regulations, specific system requirements must be met. A panel PC plays a crucial role in ensuring seamless integration by offering a centralized interface for monitoring and control. These systems must also withstand harsh marine environments, maintaining consistent performance and regulatory compliance. A panel PC’s rugged design, combined with its ability to handle critical data and display operational insights, makes it an essential component for successful ballast water treatment system implementation.
System Requirements
- Resistance to harsh marine environments, including wide temperature ranges, high humidity, and exposure to corrosive elements
- Compliance with maritime standards to ensure safe and reliable operation
Why Moxa
- A wide operating temperature range and fanless, IP66-rated enclosure to withstand harsh marine conditions
- Certified for marine environments, meeting DNV, IEC 60945, and IACS E10 standards for safety and reliability
- Robust and glove-friendly multi-touch screen made from G+G screen structure

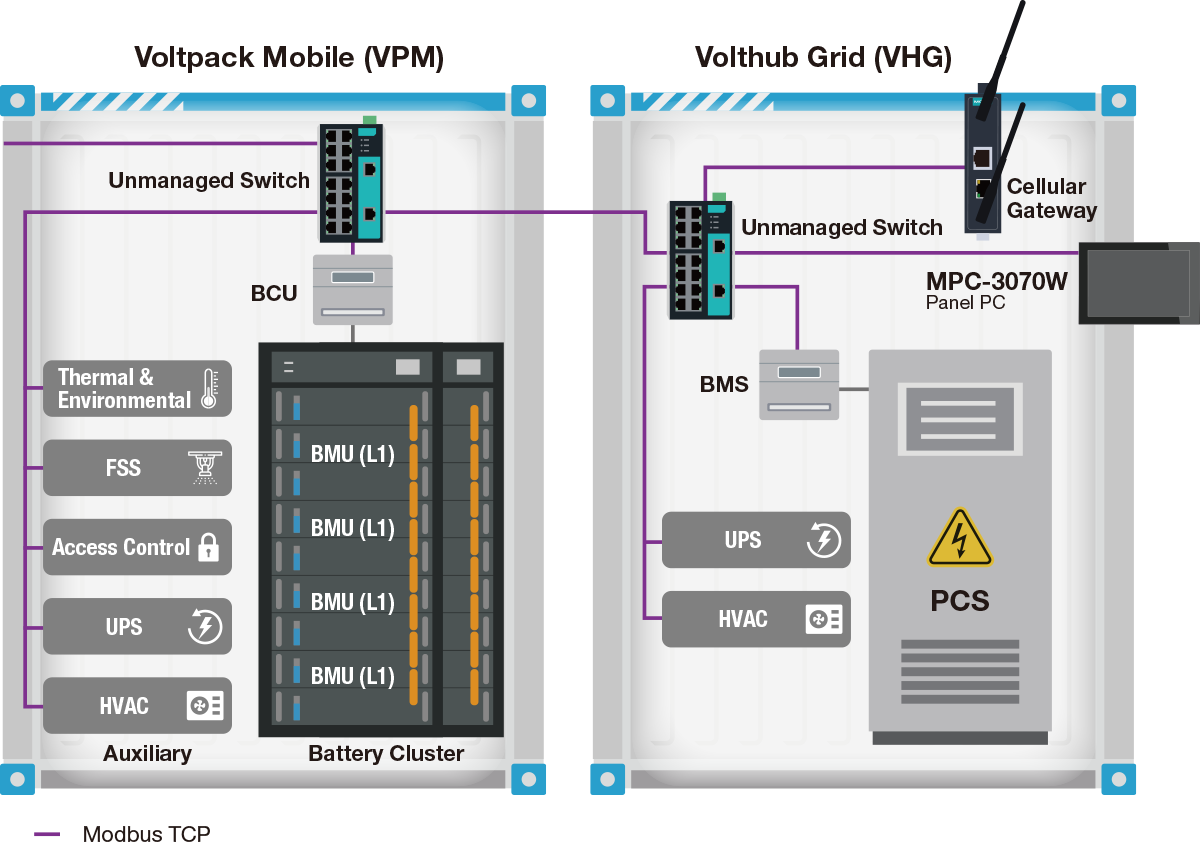

Enabling Efficient Operation of Battery Energy Storage Systems
Battery Energy Storage Systems (BESS) are pivotal in transforming global energy networks, enabling the efficient integration of renewable energy sources. In this context, panel PCs are essential for ensuring the seamless operation of BESS containers. These devices provide centralized monitoring and control capabilities, enabling real-time data visualization. By leveraging advanced panel PCs and industrial-grade solutions, operators can ensure the long-term reliability of BESS containers, driving the transition to sustainable energy networks.
System Requirements
- Higher CPU performance to drive web-based systems
- Sunlight-readable LCD for outdoor environments
- A wide operating temperature range to handle extreme conditions outside the container
Why Moxa
- Intel Atom® x6211E dual-core or x6425E quad-core processor
- High-brightness panel with 1000 nits
- Fanless design with a -30 to 60 °C operating temperature rage for outdoor environments

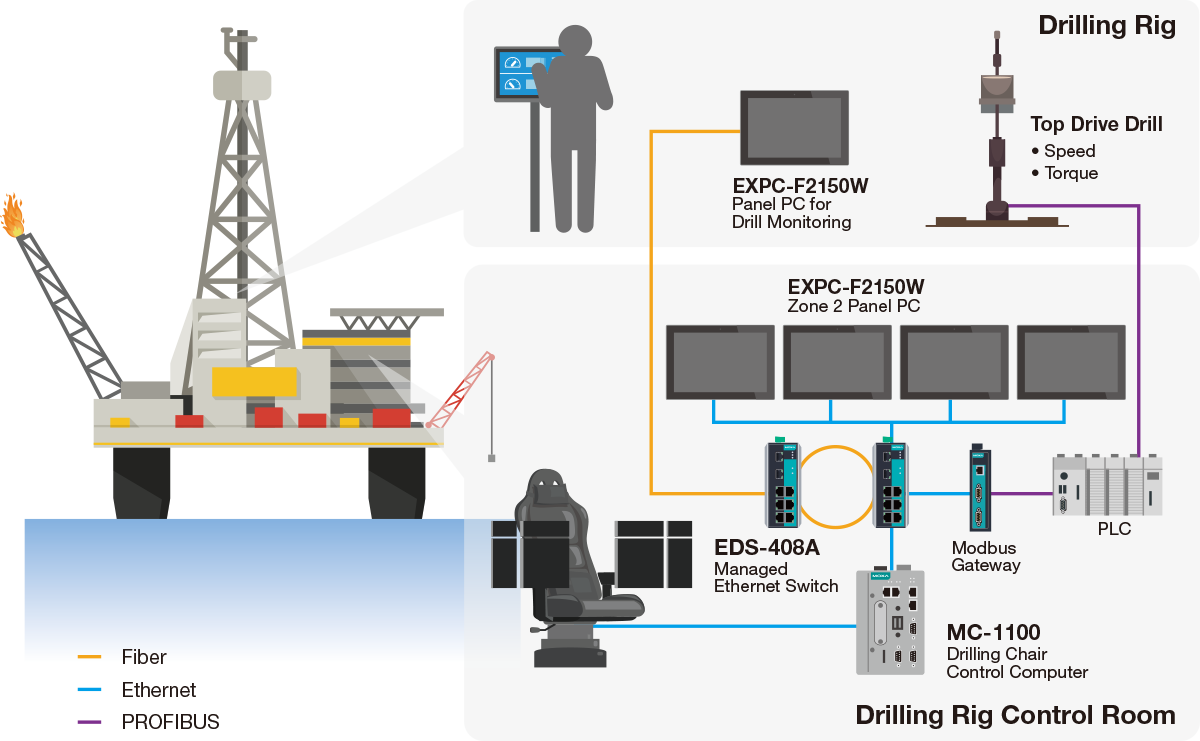

Enhancing Reliability and Performance in Drilling Control Systems
Drilling control systems are at the heart of modern oil-and-gas operations, providing real-time visualization and management of critical drilling processes. These systems enable operators to monitor and control field activities with precision, even in the most challenging environments. To ensure reliability, these systems require rugged computing solutions that meet stringent industry standards and perform consistently in harsh drilling conditions.
System Requirements
- Zone 2 certification for hazardous locations to guarantee operational safety
- Sufficient computing power to display all information, such as drilling speed, drilling torque, and IP surveillance video on the drilling console
- Withstands extreme temperatures during operation
Why Moxa
- Fanless design with highly efficient heat dissipation, even at 70°C
- High-performance Tiger Lake Intel® Celeron® or Intel® Core™ i3 processor
- CID2, ATEX Zone 2, and IECEx certified

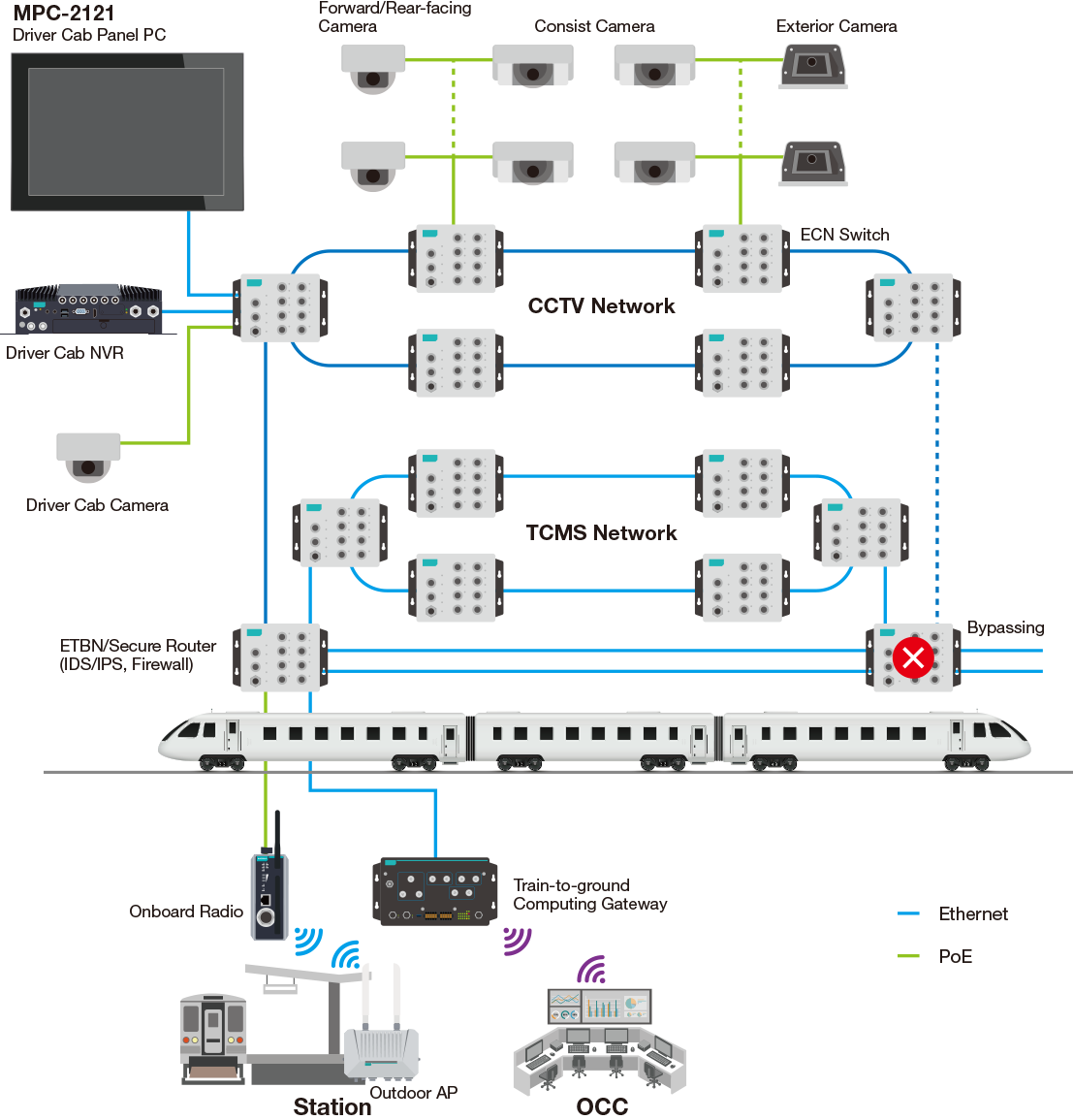

Train Operator Display Panel PCs for Modern Rail Systems
Secure and reliable onboard surveillance is essential for modern train operations, ensuring the safety of passengers and the integrity of critical data. Comprehensive systems that integrate IP cameras, versatile computers, and high-speed wired or wireless networking solutions play a pivotal role in enabling live viewing and recording for CCTV and passenger information systems (PIS). A vital component of such systems is the Train Operator Display (TOD) panel PC. This device serves as a shared display for PIS and CCTV, optimizing space in the driver’s cab while providing real-time monitoring and control.
System Requirements
- Fanless enclosure to withstand constant vibration and harsh environmental conditions
- Supports HMI software
- Compliance with railway standards
Why Moxa
- Fanless enclosure and a wide operating temperature range to endure onboard environments
- Compatibility with diverse HMI software platforms for seamless integration with CCTV and PIS systems
- Compliance with EN 50155 ensuring safety, reliability, and electromagnetic compatibility in railway environments

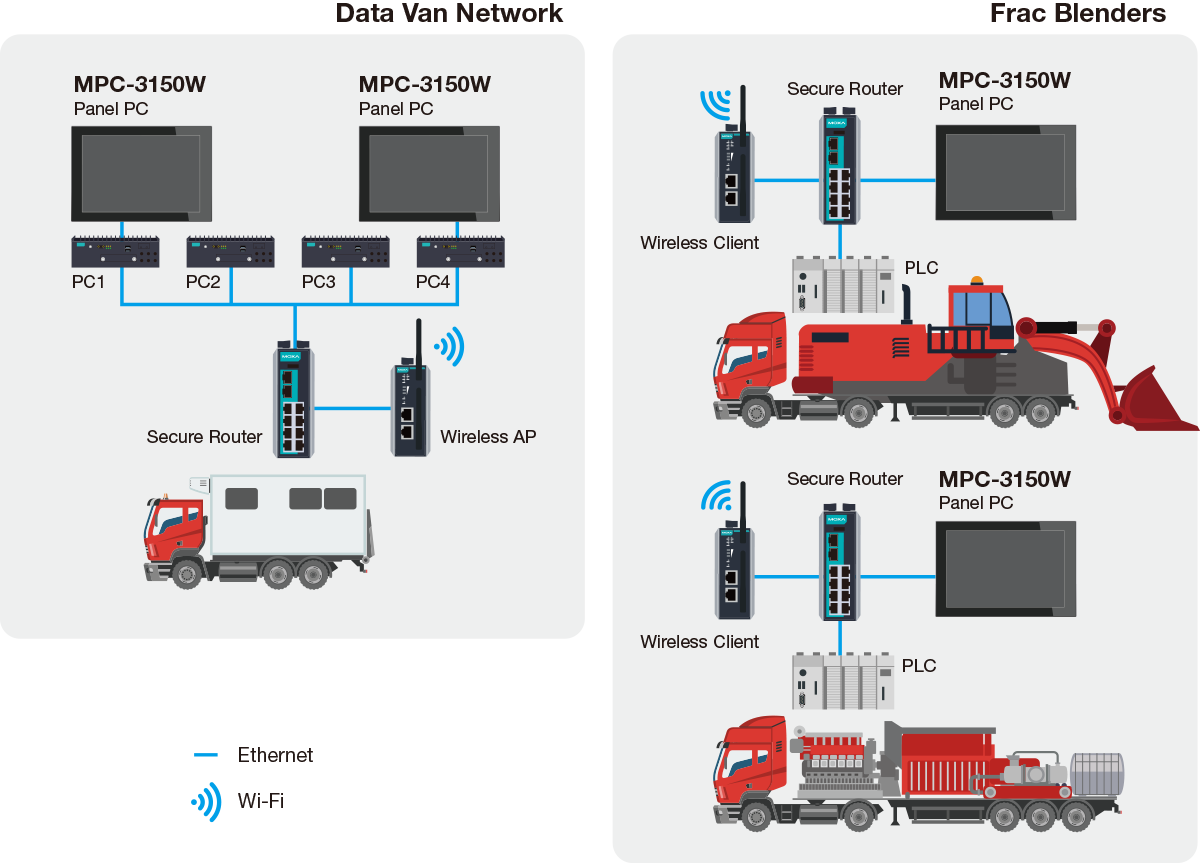

Supporting Hydraulic Fracturing With Rugged Solutions
During hydraulic fracturing, frac blenders and data vans are crucial for operational efficiency and accuracy. These critical operations require robust and reliable computing and networking solutions to withstand harsh environments. Moxa’s panel PCs and networking devices provide reliable performance and seamless connectivity for frac blender operations and data van networks in demanding environments.
System Requirements
- Rugged design to reliably weather harsh environmental challenges
- High-brightness display for visibility in direct sunlight
- Industrial-grade certifications
Why Moxa
- Lower TCO via modular design that enables easier maintenance
- Sunlight-readable 1000 nits LCD
- Compliant with CID2 and ATEX Zone 2 certifications for oil extraction environments
Recommended Products

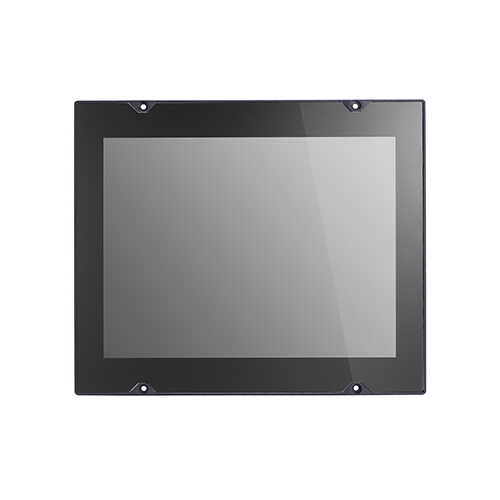

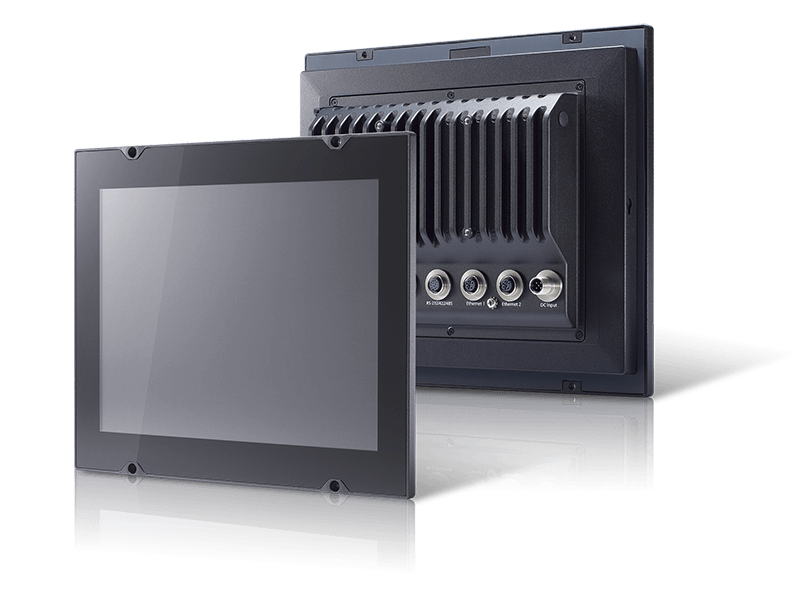

MPC-2000 Series
Panel PC for Rail
- 10” (4:3); 12” (4:3)
- Intel Atom® E3845
- A wide temperature operating range from -40 to 70°C
- 500-nit or sunlight-readable 1000-nit LED backlight
- Expansion for CAN, MVB, LTE, and Wifi
- M12 I/O port for vibration environment
- IP66
Target Application
- Rail-onboard
MPC-3000 Series
Panel PC for Tough Environments
- Display sizes ranging from 7” to 15.6”
- Intel Atom® x6211E dual-core or x6425E quad-core processor
- Wide-panel models with higher aspect ratios
- 400-nit or 1000-nit brightness
- Cableless design on the front and rear panels
- IP66-rated front panel
Target Application
- Marine engine room
- Oil & Gas applications
- Industrial-grade applications
- Outdoor applications
EXPC-F2000W Series
High Performance Explosion-proof Panel PC
- 12.1” (16:10); 15.6” (16:9)
- High-performance Tiger Lake Intel® Celeron® or Intel® Core™ i3/i5/i7 processor
- An operating temperature range of -40 to 70°C
- Sunlight-readable 1200-nit LED backlight
- Option for 5G/LTE and WiFi6
- Front bezel IP66, rear IP42
Target Application
- Hazardous environment
- Oil & Gas applications
- Industrial-grade applications
- Outdoor applications
Selection Guide
MPC-3000 Series
12.1 in (16:10)
15.6 in (16:9)
EXPC-F2000W Series
