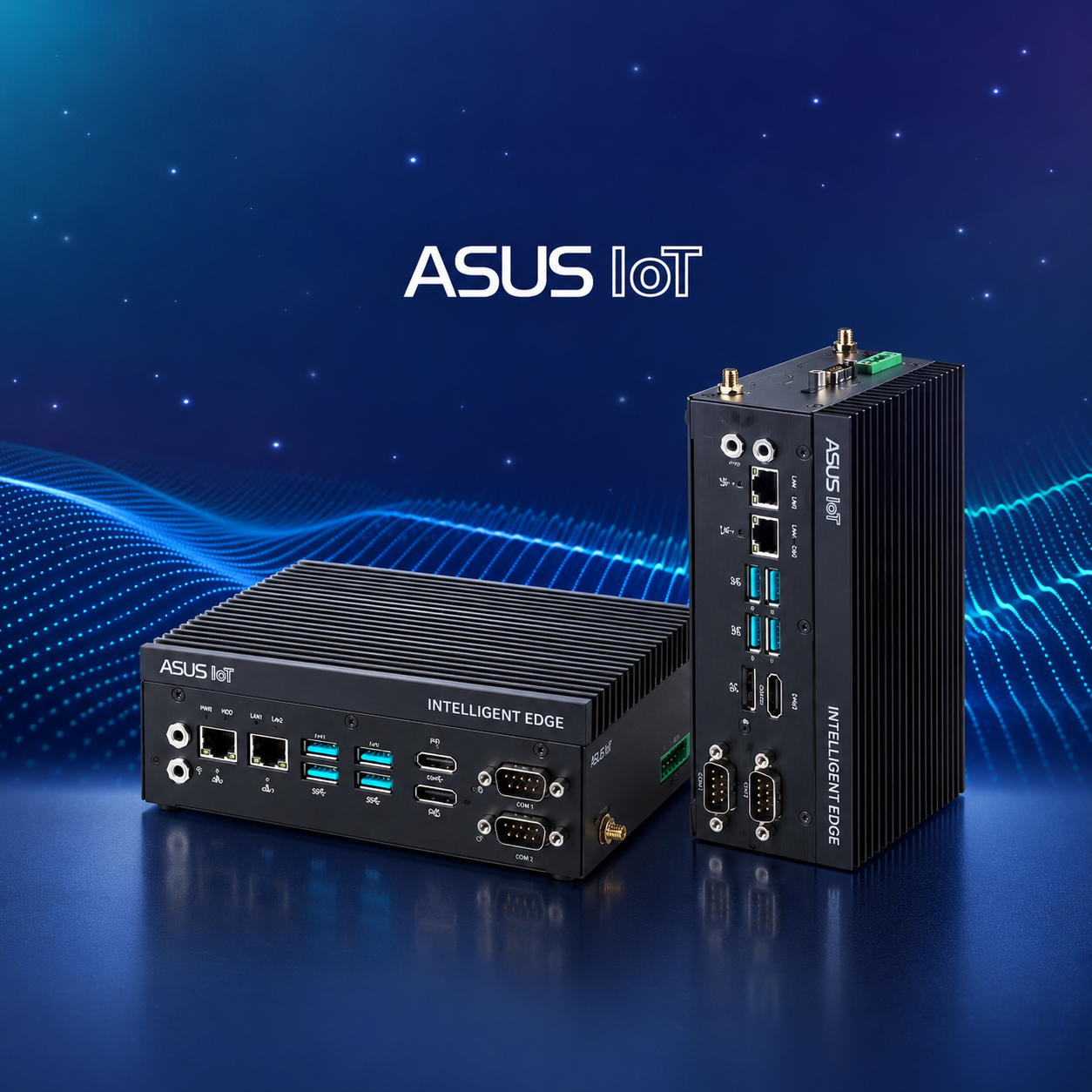

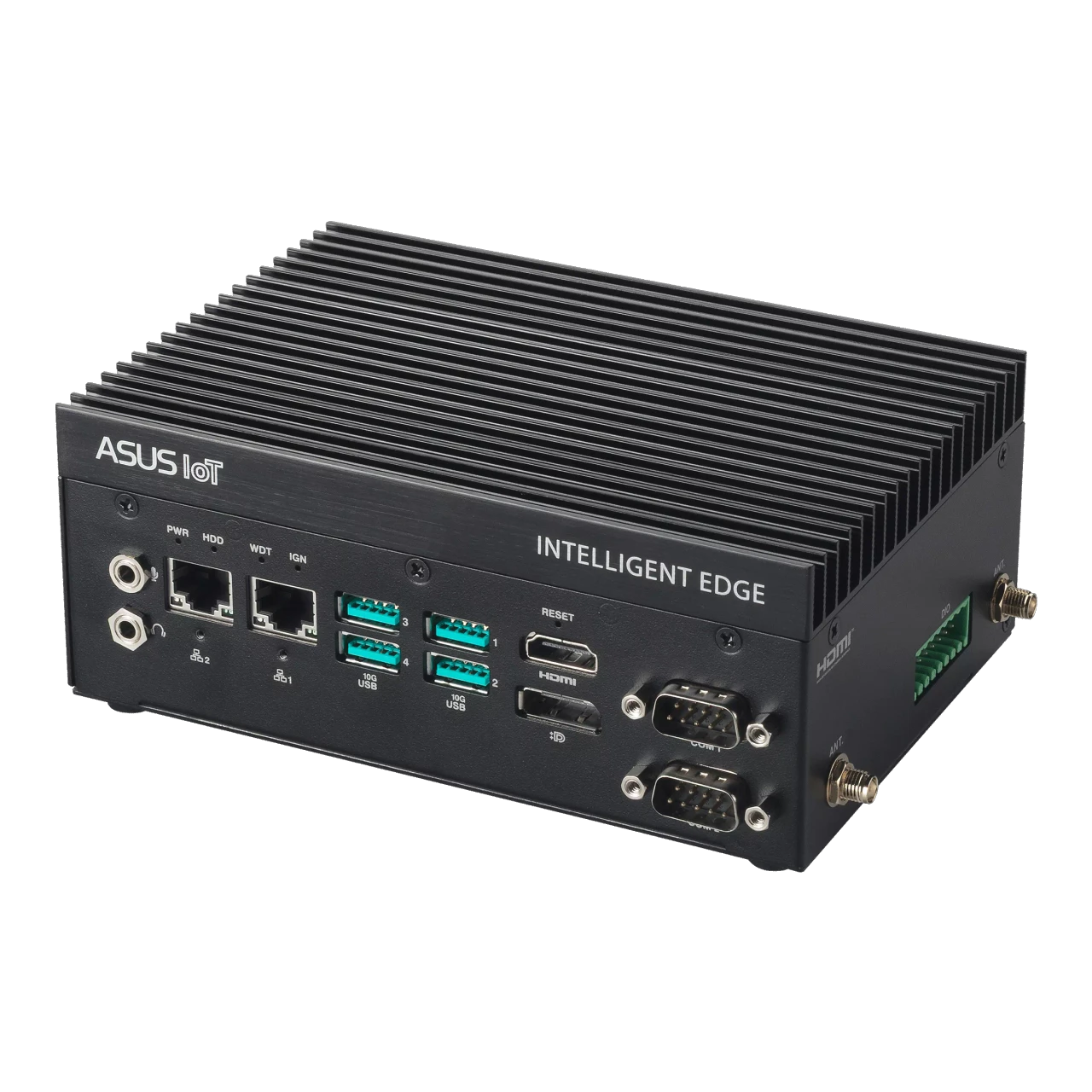

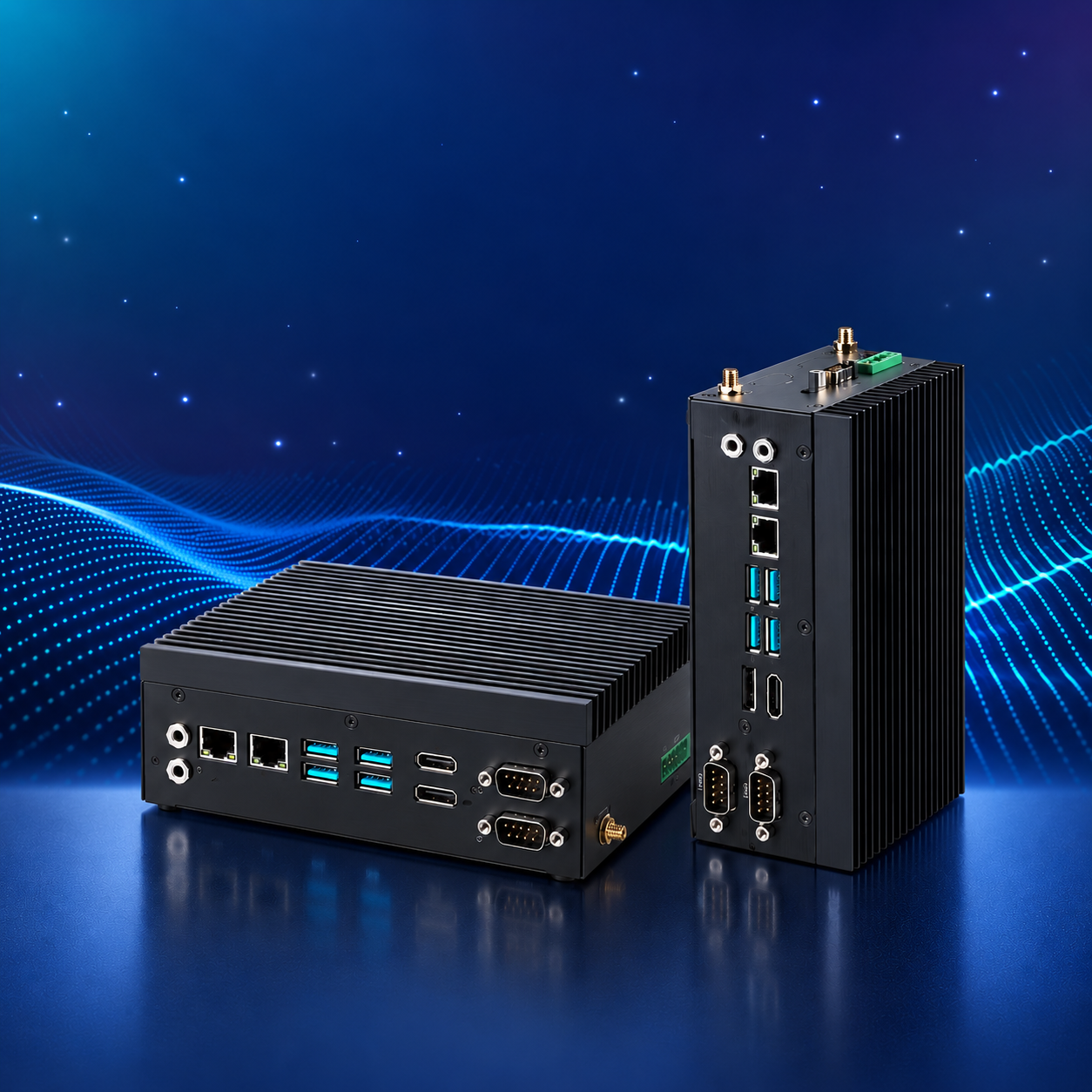

ASUS IoT PE1000U Series
Compact edge computer features an Intel Core Ultra Series 2 processor and extensive I/O connectivity.
The 3 Critical Failure Vectors
Field failures are usually tied to three specific variables. Validate your project against these vectors to ensure 24/7 reliability.
Machine shops push oil mist and metal dust through fan intakes. Filters clog, cores throttle, and the vision station drops frames mid-cycle.
Vision, motion control, and fieldbus each land on their own controller. Cabinet space runs out, wiring grows, and every added node becomes another failure point.
Sending frames offsite adds hundreds of milliseconds. The line either slows to match the network or ships defects that the model flagged too late.
The Right Solution for Your Toughest Deployment Challenges
Intel Core Ultra Series 2 splits inference across CPU, GPU, and NPU. Vision models run beside motion logic on one 15W controller.
No fan means no intake for oil mist or swarf. The sealed aluminum chassis runs continuously, with industrial memory and SSD above 60°C.
Tested to 5Grms vibration and 40G shock under MIL-STD-810H. The 1 kg chassis rides on AMRs, gantries, and stamping presses without a mount redesign.
Two CAN Bus 2.0 ports, four RS-232/422/485 COM, and isolated 4 DI and 4 DO tie robots, sensors, and legacy PLCs to one controller.
The 63 x 110 x 160 mm body clips onto standard DIN rail and frees panel space. Wall-mount hardware is available for machine-side installs.
M.2 E-key takes Wi-Fi and Bluetooth. M.2 B-key with nano-SIM takes 5G or LTE for AMR fleets. A four-LAN SKU replaces the DIO block.
PE1000U Selection Guide
Both builds share the same chassis and I/O. Choose the compute tier that matches your inspection workload.
