Seamless Integration of Renewable Energy into the Grid

Introduction

Modern power utilities increasingly adopt IEC 61850 technology, originally developed for electrical substations. However, many existing grids still rely on legacy equipment with long operational lifespans, only replaced when necessary due to damage or regulatory changes. As a result, power grids often contain a mix of modern and legacy systems. For example, many substations still use communication protocols like Modbus TCP, as seen in an Australian battery management system (BMS). Integrating new IEC 61850 relays into these older systems presents a significant challenge.

System Requirements

In this case, a power substation’s SCADA system monitored power generation and consumption. While the newly added intelligent electronic devices (IEDs) used the IEC 61850 protocol, the existing SCADA and BMS operated on Modbus TCP. Bridging the communication gap between the two protocols was essential.

Moxa Solution

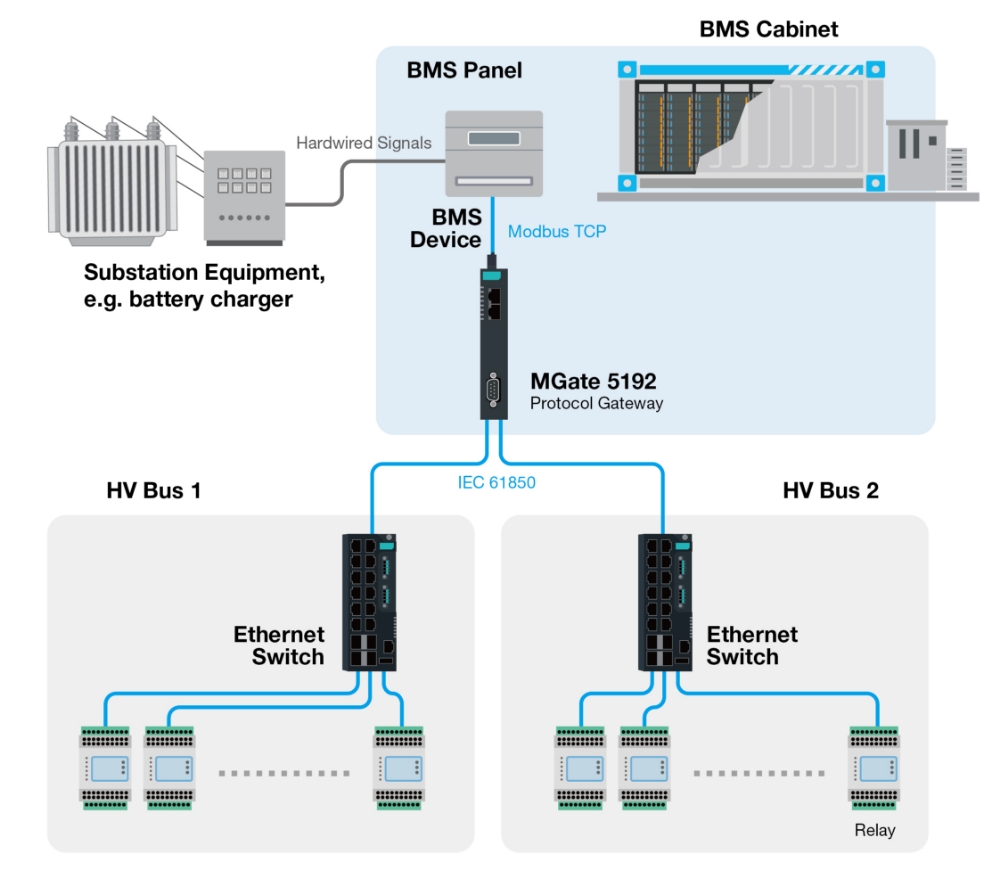

To address this, the Moxa MGate 5192 Series protocol gateway was implemented to enable seamless communication between IEC 61850 and Modbus TCP devices. By importing the IEC 61850 CID file into the MGate, users could easily access relay settings and set up the required protocol conversions. The gateway’s active read/write capabilities allowed for testing without needing full system connectivity.

Engineered for harsh environments, the MGate 5192 features a rugged design and wide temperature tolerance, ensuring reliable operation even in sun-exposed outdoor cabinets. Its secure boot and encrypted data transmission features further ensure safe and dependable data exchange.

By deploying the MGate 5192 Series, power grid operators were able to integrate modern IEC 61850 devices into legacy Modbus TCP systems with ease. This solution not only simplifies protocol translation but also enhances the reliability, security, and efficiency of power grid retrofitting—helping ensure modern utilities are both robust and future-ready.

‍

‍
